SS5G
Optional for extruding high-strength materials
It is compatible with high-strength materials due to the shift to xEV etc.
Improving the rigidity of end platens
Adoption of highly rigid platen, increased thickness of end platen, increased thickness of pressure ring, pressure ring split structure.
- Reduces deflection of the die strike surface by approx. 25%.
- Larger exit holes in the platen than previously.
- Split pressure ring construction reduces costs and simplifies replacement by only requiring periodic replacement of the sub-pressure ring.

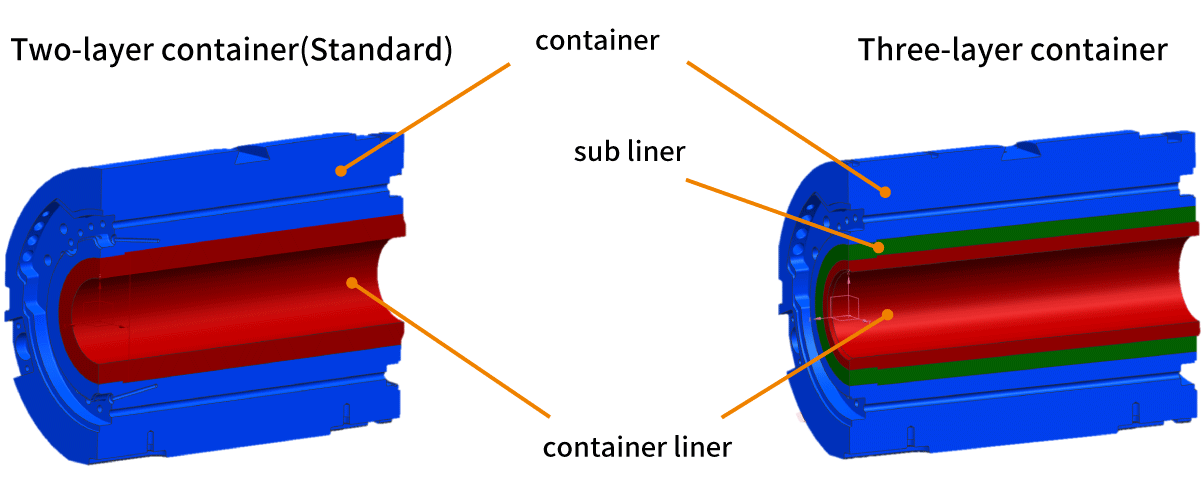

Three-layers of containers
Three-layer container with high durability to cope with high surface pressure.
